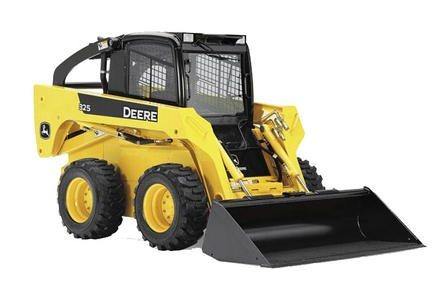

If you need to rent a payloader for a heavy duty commercial or residential project that can carry more weight than a John Deere 320D skidsteer, then the increased power and load capacity of the John Deere 325D payloader rentals make a great choice.
Power: The John Deere 325D payloader’s 5 cylinder engine delivers 76 HP and allows you to carry loads of up to 2,500 lbs. (The 325D’s Tipping Load is 5,000 lbs. vs. the John Deere 320D skidsteer rental which is 4000lbs.)
Visibility: The 325D’s superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters).
Superior bucket angle: The 325D’s 40-degree dump angle allows the bucket to empty all content (including sticky material).
Comfort: The 325D’s sculptured high back seat will help you keep productivity high.
Reliability: When you rent a payloader like the John Deere 325D you don’t have to worry about performance and reliability. As an example, the 325D’s heavy‐duty drive chains never need adjusting and the battery is maintenance free.
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
|A. Length with Bucket||11.5 ft in||3518 mm|
|B. Width Over Tires||6.1 ft in||1872 mm|
|C. Height to Top of Cab||6.7 ft in||2055 mm|
|D. Wheelbase||4 ft in||1209 mm|
|E. Ground Clearance||9 in||229 mm|
|F. Length w/o Bucket||9.6 ft in||2934 mm|
|G. Clearance at Max Lift and Dump||8.3 ft in||2540 mm|
|H. Reach at Max Lift and Dump||34 in||864 mm|
|Gross Power||76 hp||56.7 kw|
|Net Power||70 hp||52.2 kw|
|Power Measured @||2800 rpm|
|Displacement||186 cu in||3 L|
|Number of Cylinders||5|
|Operational Weight||8390 lb||3806 kg|
|Fuel Capacity||24 gal||91 L|
|Max Speed||11 mph||17.7 km/h|
|Tire Size||12x16.5 8 PR SKS|
|Operating Voltage||12 V|
|Alternator Supplied Amperage||70 amps|
|Operating Load Rating||2500 lb||1134 kg|
|Tipping Load||5000 lb||2268 kg|
|Breakout Force||7500 lb||3401.9 kg|
|Bucket Capacity||0.65 yd3||0.5 m3|
|Pump Flow Capacity||21.9 gal/min||83 L/min|
|Relief Valve Pressure||3100 psi||21373.7 kPa|
|Length with Bucket||11.5 ft in||3518 mm|
|Length w/o Bucket||9.6 ft in||2934 mm|
|Width Over Tires||6.1 ft in||1872 mm|
|Height to Top of Cab||6.7 ft in||2055 mm|
|Clearance at Max Lift and Dump||8.3 ft in||2540 mm|
|Wheelbase||4 ft in||1209 mm|
|Ground Clearance||9 in||229 mm|
|Reach at Max Lift and Dump||34 in||864 mm|
|Turning Radius from Center - inc bucket||83.7 in||2126 mm|
