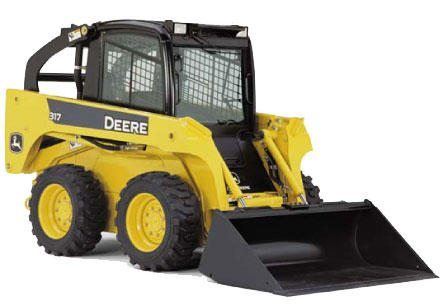

Need to rent a payloader for a commercial or residential project that can get the job done quicker (and carry more weight) than a John Deere 315D payloader? If tight spaces are not an issue, then the increased power and load capacity of a John Deere 317D payloader Rental might be the way to go.
Powerful: The 317D payloader’s Turbocharged 2.4L diesel engine delivers 61 HP (vs. 45 for theJohn Deere 315D payloader rental), and allows you to carry loads of up to 1750 lbs (vs. 1500 lbs. for the 315D). (And the 317D’s Tipping Load is 3,700 lbs. vs. 3,000 lbs. for the 315D.)
Visibility: As with the 315D, the 317D’s superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters).
Superior bucket angle: As with the 315D, the 317D’s 40-degree dump angle allows the bucket to empty all content (including sticky material).
Comfort: As with the John Deere 315D, the 317D’s sculptured high back seat will help you keep productivity high.
Reliability: When you rent a payloader like the John Deere 317D you don’t have to worry about performance and reliability. As an example, the 317D’s heavy‐duty drive chains never need adjusting and the battery is maintenance free.
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
|A. Length with Bucket||10.5 ft in||3195 mm|
|B. Width Over Tires||5.3 ft in||1628 mm|
|C. Height to Top of Cab||6.3 ft in||1915 mm|
|D. Wheelbase||3.5 ft in||1074 mm|
|E. Ground Clearance||8.2 in||208 mm|
|F. Length w/o Bucket||8.5 ft in||2591 mm|
|G. Clearance at Max Lift and Dump||7.4 ft in||2255 mm|
|H. Reach at Max Lift and Dump||29.1 in||739 mm|
|Gross Power||61 hp||45.5 kw|
|Net Power||57 hp||42.5 kw|
|Power Measured @||2800 rpm|
|Displacement||149 cu in||2.4 L|
|Number of Cylinders||4|
|Operational Weight||6300 lb||2857.6 kg|
|Fuel Capacity||16 gal||60.6 L|
|Max Speed||6.8 mph||10.9 km/h|
|Tire Size||10x16.5 8PR|
|Operating Voltage||12 V|
|Alternator Supplied Amperage||70 amps|
|Operating Load Rating||1750 lb||793.8 kg|
|Tipping Load||3700 lb||1678.3 kg|
|Breakout Force||5500 lb||2494.8 kg|
|Bucket Capacity||0.54 yd3||0.41 m3|
|Pump Flow Capacity||16.9 gal/min||64 L/min|
|Relief Valve Pressure||3450 psi||23786.9 kPa|
|Length with Bucket||10.5 ft in||3195 mm|
|Length w/o Bucket||8.5 ft in||2591 mm|
|Width Over Tires||5.3 ft in||1628 mm|
|Height to Top of Cab||6.3 ft in||1915 mm|
|Clearance at Max Lift and Dump||7.4 ft in||2255 mm|
|Wheelbase||3.5 ft in||1074 mm|
|Ground Clearance||8.2 in||208 mm|
|Reach at Max Lift and Dump||29.1 in||739 mm|
|Turning Radius from Center - inc bucket||78.9 in||2004 mm|
