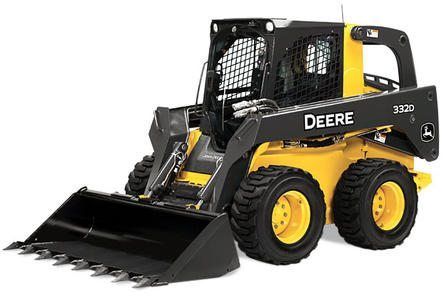

If you need to rent a payloader for a heavy duty commercial or residential project that can carry slightly more weight than a John Deere 328D payloader, then the increased power and load capacity of the John Deere 332D payloader rentals make a great choice.
Power: The 332D payloader’s 5 cylinder engine delivers 91 HP and allows you to carry loads of up to 3,175 lbs. (The 332D’s Tipping Load is 6,350 lbs. vs the John Deere 328D skid steer rental at 5600lbs.)
Visibility: The John Deere 332D payloader’s superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters).
Superior bucket angle: The JD 332D’s 40-degree dump angle allows the bucket to empty all content (including sticky material).
Comfort: The 332D’s sculptured high back seat will help you keep productivity high.
Reliability: When you rent a payloader like the John Deere 332D you don’t have to worry about performance and reliability. As an example, the 332D’s heavy‐duty drive chains never need adjusting and the battery is maintenance free.
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance items, fuel levels, and much more.
|A. Length with Bucket||11.5 ft in||3518 mm|
|B. Width Over Tires||6.4 ft in||1958 mm|
|C. Height to Top of Cab||6.9 ft in||2106 mm|
|D. Wheelbase||4 ft in||1234 mm|
|E. Ground Clearance||9.5 in||241 mm|
|F. Length w/o Bucket||9.6 ft in||2934 mm|
|G. Clearance at Max Lift and Dump||8.5 ft in||2591 mm|
|H. Reach at Max Lift and Dump||32 in||813 mm|
|Gross Power||91 hp||67.9 kw|
|Net Power||85 hp||63.4 kw|
|Power Measured @||2800 rpm|
|Displacement||186 cu in||3 L|
|Number of Cylinders||5|
|Operational Weight||9160 lb||4154.9 kg|
|Fuel Capacity||24 gal||90.8 L|
|Max Speed||11.2 mph||18 km/h|
|Tire Size||14x17.5 14 PR|
|Operating Voltage||12 V|
|Alternator Supplied Amperage||70 amps|
|Operating Load Rating||3175 lb||1440.2 kg|
|Tipping Load||6350 lb||2880.3 kg|
|Breakout Force||11600 lb||5261.7 kg|
|Bucket Capacity||0.65 yd3||0.5 m3|
|Pump Flow Capacity||24 gal/min||91 L/min|
|Relief Valve Pressure||3100 psi||21373.7 kPa|
|Length with Bucket||11.5 ft in||3518 mm|
|Length w/o Bucket||9.6 ft in||2934 mm|
|Width Over Tires||6.4 ft in||1958 mm|
|Height to Top of Cab||6.9 ft in||2106 mm|
|Clearance at Max Lift and Dump||8.5 ft in||2591 mm|
|Wheelbase||4 ft in||1234 mm|
|Ground Clearance||9.5 in||241 mm|
|Reach at Max Lift and Dump||32 in||813 mm|
|Turning Radius from Center - inc bucket||83.7 in||2126 mm|
