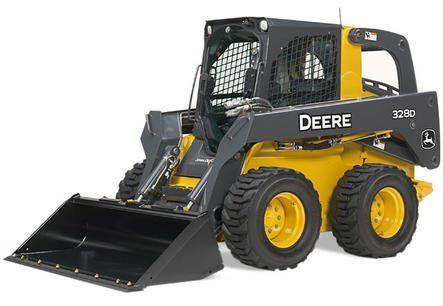

If you need to rent a payloade for a heavy duty commercial or residential project that can
carry slightly more weight than a John Deere 326D payloade, then the increased power and
load capacity of the John Deere 328D payloade rental makes a great choice.
Power: The 328D payloade’s 5 cylinder engine delivers 85 HP and
allows you to carry loads of up to 2,800 lbs. (The 328D’s Tipping Load is 5,600 lbs.)
Visibility: The 328D’s superior visibility gives you a clear view of
the bucket and the tire edges. (Helpful in close quarters).
Superior bucket angle: The 328D’s 40-degree dump angle allows the
bucket to empty all content (including sticky material).
Comfort: Similar to the
John Deere 326D payloade
rental, the 328D’s sculptured high back seat will help you keep productivity
high.
Reliability: When you rent a payloade like the John Deere 328D you
don’t have to worry about performance and reliability. As an example, the 328D’s
heavy‐duty drive chains never need adjusting and the battery is maintenance free.
What can you do with a John Deere 328D payloade rental?
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Snow removal
- Remove debris from construction sites
- Fence pole installation
- Sod removal
- Clear land and load rubbish bins
- Plant trees
- Remove stumps
- Load pickup trucks, hoppers and spreaders
- Grade and level driveways
- Load sand and gravel
- Brush cutting
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See our
Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
| Emission Rating |
Tier 3 / EU Stage 3A |
| Net Power, kW (hp) @ Rated rpm |
59.6 (80) @ 2200 |
| Gross power, kW (hp) |
63.4 (85) |
| Net peak torque, N-m (lb-ft) |
300 (221) |
| Displacement, L (cu in) |
3 (186) |
| Engine aspiration |
Turbo. Intercooled |
| Fuel capacity, L (gal) |
110.5 (29) |
| Standard pump flow, L/min (gpm) |
80 (21) |
| Optional high flow, L/min (gpm) |
132 (35) |
| System pressure, kPa (psi) |
23800 (3450) |
| Hydraulic power, kW (hp) |
34 (46) |
| Optional high flow hydraulic power, kW (hp) |
57 (77) |
| SAE rated operating capacity, kg (lb) |
1271 (2800) |
| SAE ROC with optional counterweight, kg (lb) |
1339 (2950) |
| Tipping Load, standard, kg (lb) |
2542 (5600) |
| Breakout Force Boom, kN (lb) |
2.27 (5000) |
| Breakout Force Bucket, kN (lb) |
4.68 (10300) |
| Vertical lift geometry |
Yes |
| Maximum Ground Speed, standard, kph (mph) |
11.3 (7) |
| Two Speed Transmission Ground Speed, kph (mph) |
19.3 (12) |
| Drive Chain Rating |
2540 (100) |
| Axle Torque, Nm (lb-ft) |
8480 (6235) |
| Tire size - Standard |
14 x 17.5 12PR Extra Wall |
| Length with Bucket, mm (in) |
3600 (142) |
| Length without Bucket, mm (in) |
2990 (118) |
| Width without Bucket, mm (in) |
1950 (77) |
| Height to ROPS, mm (in) |
2150 (85) |
| Height to Hinge Pin, mm (in) |
3220 (127) |
| Dump Height, mm (in) |
2570 (101) |
| Dump Reach, mm (in) |
796 (31.3) |
| Dump Angle, degrees |
45 |
| Bucket Rollback @ ground, degrees |
35 |
| Wheelbase, mm (in) |
1230 (48) |
| Ground Clearance, mm (in) |
295 (11.6) |
| Angle of Departure, degrees |
31 |
| SAE Operating weight, kg (lb) |
3814 (8400) |
