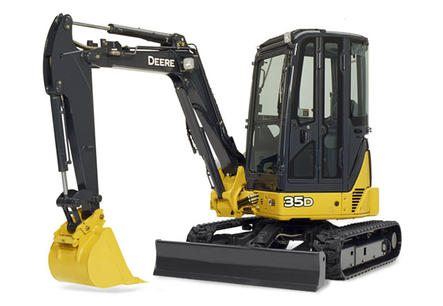

If you need to rent a Mini Excavator that is the next step up from the John Deere 27D mini
excavator rental, then the compact and powerful John Deere 35D Mini Excavator is a
great choice. It’s maximum digging depth of 10 feet and digging reach of 17 feet 1
inch make it a versatile tool for commercial or residential projects.
Power: The 35D’s high drawbar pull (pulling force) delivers plenty of
power for backfilling trenches or transporting materials.
Compact: The 35D’s independent-swing boom and 360-degree rotation
allows you to work in areas where shovels used to be the only option.
Visibility: The 35D’s unobstructed visibility provides you with
increased productivity and safety.
Versatile: With multiple attachment options, the John Deere 35D mini
excavator is an extremely flexible tool.
What can you do with a John Deere 35D Mini Excavator rental?
- Tear down a house
- Dig up sewage pipes or electrical conduit

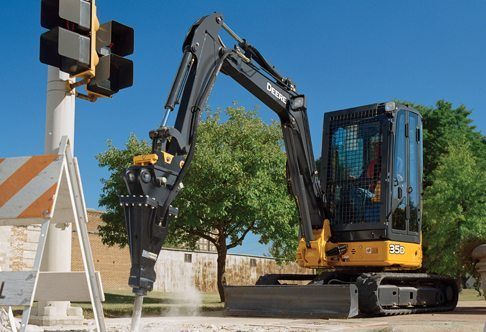

- Break up concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Fence pole installation
- Plant trees
- Remove stumps

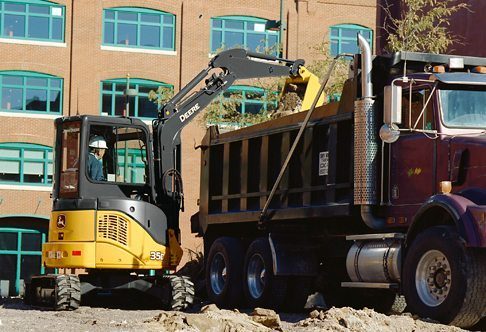

- Load sand and gravel
- Brush Cutting
We provide quick delivery on all payloader rentals, mini-excavator rentals, and compact
track loader rentals throughout the Greater Seattle Region.
*** equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
ENGINE
| Emission Rating |
Interim Tier 4 / EU Stage 3B |
| Engine Make / Engine Model |
Yanmar / 3 TNV 88 |
| Net Power, kW (hp) @ Rated rpm |
21.3 (28.6) @ 2400 |
| Gross Power, kW (hp) |
not published |
| Displacement, L (cu in) |
1.606 (100.4) |
HYDRAULIC SYSTEM
| Pump Type |
Variable Displacement + Gear |
| Total Pump Flow, L/m (gpm) |
80.2 (21.2) |
| Normal Relief Pressure, kPa (psi) |
not published |
| Auxilliary Hyd. Max Flow Rate, L/m (gpm) |
66.2 (17.5) |
UNDERCARRIAGE
| Track Width, mm (in) |
300 (12) |
| Overall Track Length, mm (ft) |
2110 (6 ' 11 '') |
| Ground Clearance, mm (in) |
280 (11) |
| Width Over Std Track, mm (ft) |
1740 (5 ' 9 '') |
| Ground Pressure, Std. Track, kPa (psi) |
31.7 (4.6) |
| Travel speed 1, kph (mph) |
2.8 (1.7) |
| Travel speed 2, kph (mph) |
4.4 (2.8) |
| Travel speed 3, kph (mph) |
not published |
| Travel speed 4, kph (mph) |
not published |
| Gradeability, % |
--- |
| Gradeability, deg |
--- |
| Max. Drawbar Pull, kN (lbf) |
not published |
BLADE
| Blade Width, mm (ft) |
1740 (5 ' 9 '') |
| Blade Height, mm (ft) |
370 (14.6) |
| Blade Max Lift Above Grd. Level, mm (in) |
370 (14.6) |
| Blade Max Lift Below Grd. Level, mm (in) |
390 (15.4) |
PERFORMANCE
| Standard Arm, mm (ft in) |
1350 (4 ' 4 '') |
| Max. Digging Height w/Std Arm, mm (ft) |
4870 (16 ' ) |
| Max. Digging Depth w/Std Arm, mm (ft) |
3050 (10 ' ) |
| Max. Digging Reach w/Std Arm, mm (ft) |
5310 (17 ' 1 '') |
| Max. Digging Reach @ G.L. w/Std Arm, mm (ft) |
not published |
| Max. Dump Height w/Std Arm, mm (ft) |
3490 (11 ' 5 '') |
| Max. Vertical Wall Depth w/Std Arm, mm (ft) |
not published |
| Min. Front Swing Radius, mm (ft in) |
2070 (6 ' 9 '') |
| Min Front Swing Radius w/Boom Swing, mm (ft) |
--- |
| Boom Swing Angle - left, deg |
72 |
| Boom Swing Angle - right, deg |
62 |
| Lift Cap. Over Front @ 10' G.L. (incl bckt), kg (lb) |
1505 (3135) |
| Lift Cap. Over Side @ 10' G.L. (incl bckt), kg (lb) |
653 (1439) |
| Max Arm Digging Force, kN (lb) |
19.1 (4294) |
| Max Bucket Digging Force, kN (lb) |
27.5 (6182) |
| Tail Swing Radius, mm (ft in) |
870 (2 ' 10 '') |
| Swing Speed, rpm |
9.1 |
TRANSPORT SPECIFICATIONS
| Transport Length, mm (ft) |
4650 (15 ' 3 '') |
| Transport Height, mm (ft) |
2460 (8 ' 1 '') |
| Transport Width, mm (ft) |
1740 (5 ' 9 '') |
CAPACITIES
| Fuel Tank, L (gal) |
40 (10.6) |
| Hydraulic Reservoir, L (gal) |
32 (8.5) |
WEIGHT
| SAE Operating Weight, kg (lb) |
3520 (7760) |
