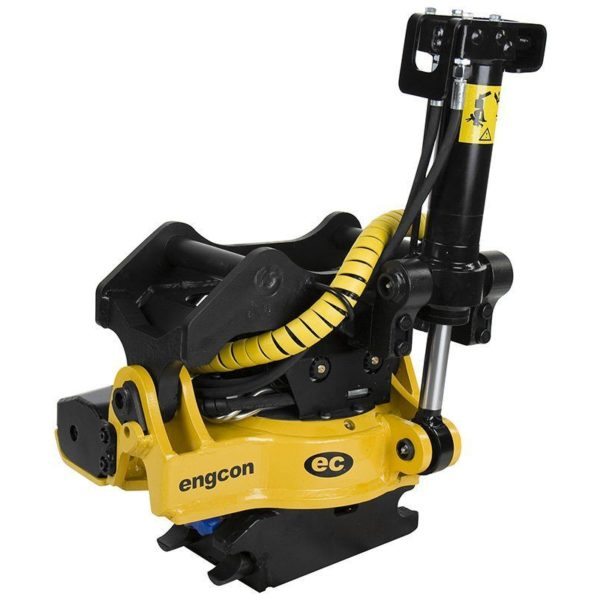

The EC05b-R tiltrotator attachment comes with a mini excavator rental. This piece is a wired attachment that requires electrical work to place onto the arm of a mini excavator. It can be rented depending the specific needs of your job.
Tiltrotator attachments allow for a broader range of work that your excavator can do. See below for just some of the jobs you can improve on with a EC05b-R tiltrotator rental from RENTCTG
Model | EC05B |
Weight (Kg) | from 155 |
Tilt Range | 2x40 |
Recommended Hydraulic Flow SS5/SS10 (l/min) | 40 |
Recommended Hydraulic Flow SS9 tilt/rotation (I/min) | 15/30 |
Max Hydraulic Pressure (MPa) | 22 |
Standard mountings | s40 s45 |
Max bucket width recommended by engcon (mm): | 1200 |
Max tensile stress (kNm) | 45 |
Base machine weight (t) | 3-5 |
