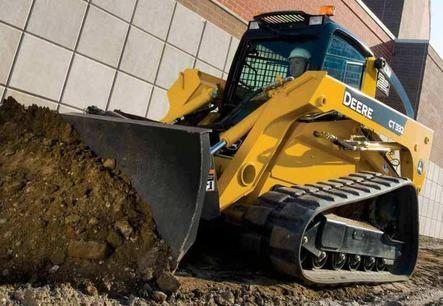

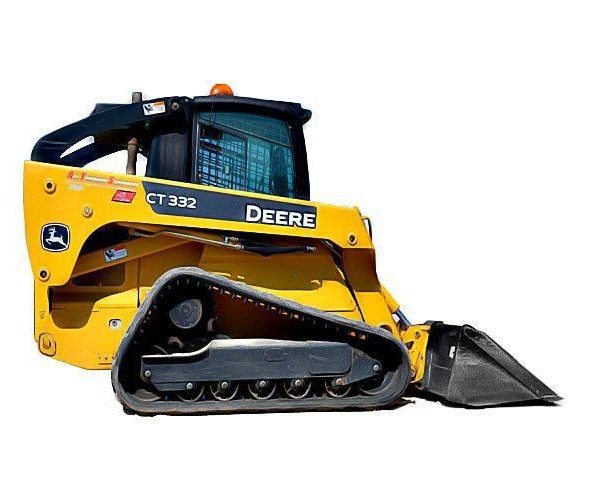

If you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for your project
consider renting the John Deere CT332. If you’re looking for similar lifting capacity
as the John Deere
333D compact track loader rental, the CT332 compact track skid steer loader is a
good alternative.
Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?
- A Compact Track Loader’s (Rubber Track Skid Steer) superior stability is
excellent for working on slopes with uneven terrain or surfaces with loose gravel,
mud or soft ground. (Places a skid steer would likely get stuck)
- The John Deere CT332 tracks distribute the loader’s weight evenly (at 4.9psi)
minimizing ground pressure. Result? Minimal damage to sensitive surfaces and
under-structure such as soil, lawns, and pipes.
- No flat tires...
Powerful: The CT332’s 5 cylinder engine delivers 82 HP (vs. 84 HP
for the 329D), allows you to carry loads of up to 3,200 lbs. (vs. 2,900 lbs. for the John Deere
329D Compact Track Skid Steer Loader Rental). The CT332’sTipping Load is
9,200 lbs. vs. 8,300 lbs. for the 329D.
Visibility: Industry-leading 360-degree visibility provides enhanced
productivity and safety.
Superior bucket angle: The 45-degree dump angle allows the bucket to
empty all content (including sticky material).
Comfort: The John Deere CT332’s sculptured high back seat will
help you keep productivity high.
What can you do with a John Deere CT332 Compact Track Loader Rental (Rubber Track Skid
Steer Rentals)?
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Snow removal
- Remove debris from construction sites
- Fence pole installation
- Sod removal
- Clear land and load rubbish bins
- Plant trees
- Remove stumps
- Load pickup trucks, hoppers and spreaders
- Grade and level driveways
- Load sand and gravel
We provide quick delivery on heavy equipment rentals throughout the Seattle region. See
our Delivery rates for more details.
KOMTRAX equipped excavator rentals will relay error codes, cautions, maintenance
items, fuel levels, and much more.
Dimensions
| A. Length w/ Bucket |
11.5 ft in |
3518 mm |
| B. Width Over Tracks |
6.7 ft in |
2047 mm |
| C. Height to Top of Cab |
6.9 ft in |
2106 mm |
| E. Ground Clearance |
11 in |
279 mm |
| F. Length w/o Bucket |
9.6 ft in |
2934 mm |
| G. Clearance at Max Lift and Dump |
8.5 ft in |
2591 mm |
| H. Reach at Max Lift and Dump |
2.8 ft in |
841 mm |
Undercarriage
| I. Track Gauge |
5.2 ft in |
1597 mm |
Engine
| Make |
John Deere |
| Model |
5030Tw |
| Gross Power |
82 hp |
61.5 kw |
| Net Power |
76 hp |
56.7 kw |
| Power Measured @ |
2800 rpm |
| Displacement |
186 cu in |
3 L |
| Number of Cylinders |
5 |
| Aspiration |
Turbocharged |
Operational
| Operating Weight |
10825 lb |
4910 kg |
| Fuel Capacity |
28 gal |
106 L |
| Operating Voltage |
12 V |
| Alternator Supplied Amperage |
70 amps |
| Max Speed - low range |
5.3 mph |
8.5 km/h |
| Max Speed - high range |
7.8 mph |
12.6 km/h |
Undercarriage
| Ground Pressure |
4.3 psi |
29.6 kPa |
| Number of Track Rollers per Side |
5 |
| Width of Track |
17.7 in |
450 mm |
| Track Gauge |
5.2 ft in |
1597 mm |
Loader
| Operating Load |
3201.1 lb |
1452 kg |
| Tipping Load |
9200 lb |
4173 kg |
| Breakout Force |
11600 lb |
5261.7 kg |
Hydraulic
| Pump Flow |
24 gal/min |
90.8 L/min |
| Relief Valve Pressure |
3100 psi |
21373.7 kPa |
Dimensions
| Width Over Tracks |
6.7 ft in |
2047 mm |
| Length w/ Bucket |
11.5 ft in |
3518 mm |
| Length w/o Bucket |
9.6 ft in |
2934 mm |
| Height to Top of Cab |
6.9 ft in |
2106 mm |
| Ground Clearance |
11 in |
279 mm |
| Clearance at Max Lift and Dump |
8.5 ft in |
2591 mm |
| Reach at Max Lift and Dump |
2.8 ft in |
841 mm |
| Turning Radius from Center - inc bucket |
83.7 in |
2126 mm |
